Schneider Electric

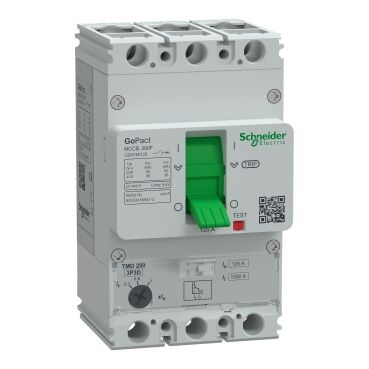

SCHNEİDER ELECTRİC G20F3A125 GOPACT MCCB 200F 3P3D 125A 36KA AYAR SAHALI KOMPAK ŞALTER

Ürün Kodu : G20F3A125
%69 İskonto
6.081,60 TL
1.885,30 TL
4.196,30 TL
KDV Dahildir.
Kampanya
  • Ürün Özellikleri
  • Ödeme Seçenekleri
  • İade ve Teslimat
  • Yorumlar (0)
  • Main
    Range of productGoPact MCCB
    Product or component typeCircuit breaker
    Product nameGoPact MCCB 200
    Device applicationDistribution
    Poles description3P
    Protected poles description3D
    [In] rated current125 A at 40 °C
    [Ue] rated operational voltage415 V AC 50/60 Hz conforming to EN/IEC 60947-2
    Suitability for isolationYes conforming to EN/IEC 60947-2
    Utilisation categoryCategory A
    [Icu] rated ultimate short-circuit breaking capacity36 kA Icu at 380/415 V AC 50/60 Hz conforming to EN/IEC 60947-2
    50 kA Icu at 220/230 V AC 50/60 Hz conforming to EN/IEC 60947-2
    Performance levelF 36 kA 380/415 V AC
    Trip unit nameTM-D
    Trip unit technologyThermal-magnetic
    Trip unit protection functionsLI
    Control typeToggle
    Circuit breaker mounting modeFixed
    Complementary
    [Ui] rated insulation voltage440 V AC conforming to EN/IEC 60947-2
    [Uimp] rated impulse withstand voltage6 kV conforming to EN/IEC 60947-2
    [Ics] rated service short-circuit breaking capacity36 kA at 380/415 V AC 50/60 Hz conforming to EN/IEC 60947-2
    50 kA at 220/230 V AC 50/60 Hz conforming to EN/IEC 60947-2
    Mechanical durability30000 cycles
    Electrical durability8000 cycles at 415 V In
    Power dissipation per pole16 W
    Mounting supportBackplate
    Mounting positionHorizontal and vertical
    Flat on the back
    upside connectionFront
    Downside connectionFront
    Connection terminalsScrew terminals
    Connection pitch25 mm
    Protection typeL : for overload protection (thermal)
    I : for short-circuit protection (magnetic)
    Trip unit rating125 A at 40 °C
    Long-time pick-up adjustment type Ir (thermal protection)Adjustable
    [Ir] long-time protection pick-up adjustment range0.7...1 x In
    Long-time protection delay adjustment type trFixed
    Instantaneous protection pick-up adjustment type IiFixed
    [Ii] instantaneous protection pick-up adjustment range12 x In
    Width (W)75 mm
    Height (H)130 mm
    Depth (D)60 mm
    Net weight0.9 kg
    ColourGrey (RAL 7035)
    Environment
    StandardsEN/IEC 60947-1
    EN/IEC 60947-2
    EN/IEC 60947-2 Annex H
    Overvoltage categoryIII
    Pollution degree3 conforming to IEC 60664-1
    IP degree of protectionIP20 conforming to IEC 60529
    Ambient air temperature for operation-20…55 °C
    Ambient air temperature for storage-35…85 °C
    Operating altitude0...2000 m without derating
    2000...5000 m with derating
    Packing Units
    Unit Type of Package 1PCE
    Number of Units in Package 11
    Package 1 Height13.6 cm
    Package 1 Width8.5 cm
    Package 1 Length13.9 cm
    Package 1 Weight0.995 kg
